Processing a SmartExtract Request

After a SmartExtract request has been submitted there are 2 steps that take place.

1. SmartExtract will suggest a value for the Type based upon the information within the chosen template.
2. Once the correct type value is accepted, SmartExtract will then process the rest of the document suggesting values for fields identified for extraction for that Type.

The processing of a request is done via the SmartExtract wizard.

• The Wizard is automatically displayed once review of the Document has completed.
• The Wizard is presented if you access SmartExtract via a message in the Notification area

---

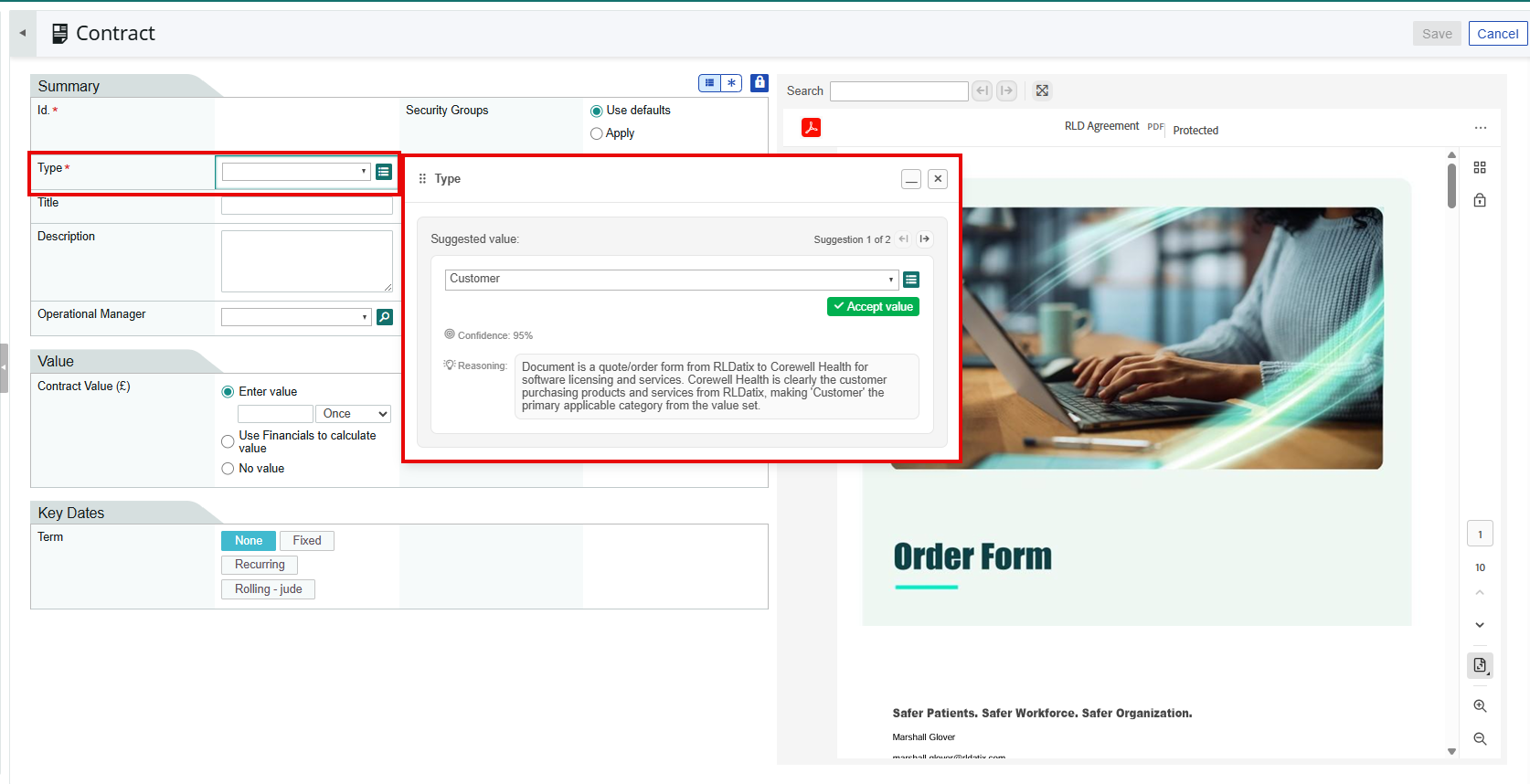

The screen will open as a blank Contract record, with a preview of the document presented on the right of the screen, this will enable you to look within the document to check or amend suggested values.

The wizard will display in the middle of the screen and will move within the layout of the Contract record as you progress through the fields.

The Wizard has a number of attributes to aid you in processing the request and are detailed in Stage 2.

Stage 1 - Type Confirmation

SmartExtract will use the Extraction template to initially suggest the Contract Type for your new record. The confirmation of Type is required so SmartExtract knows which fields it is supposed to process for extraction.

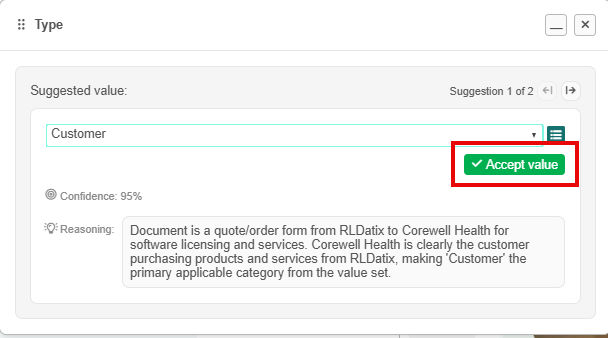

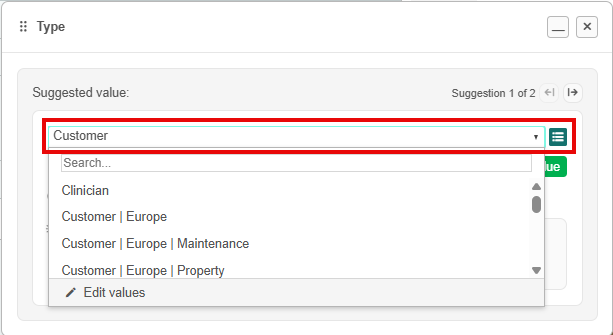

You can change the suggested Type value to another using the drop down list



Once you are happy with the suggested Type value press the green [Accept Value] button

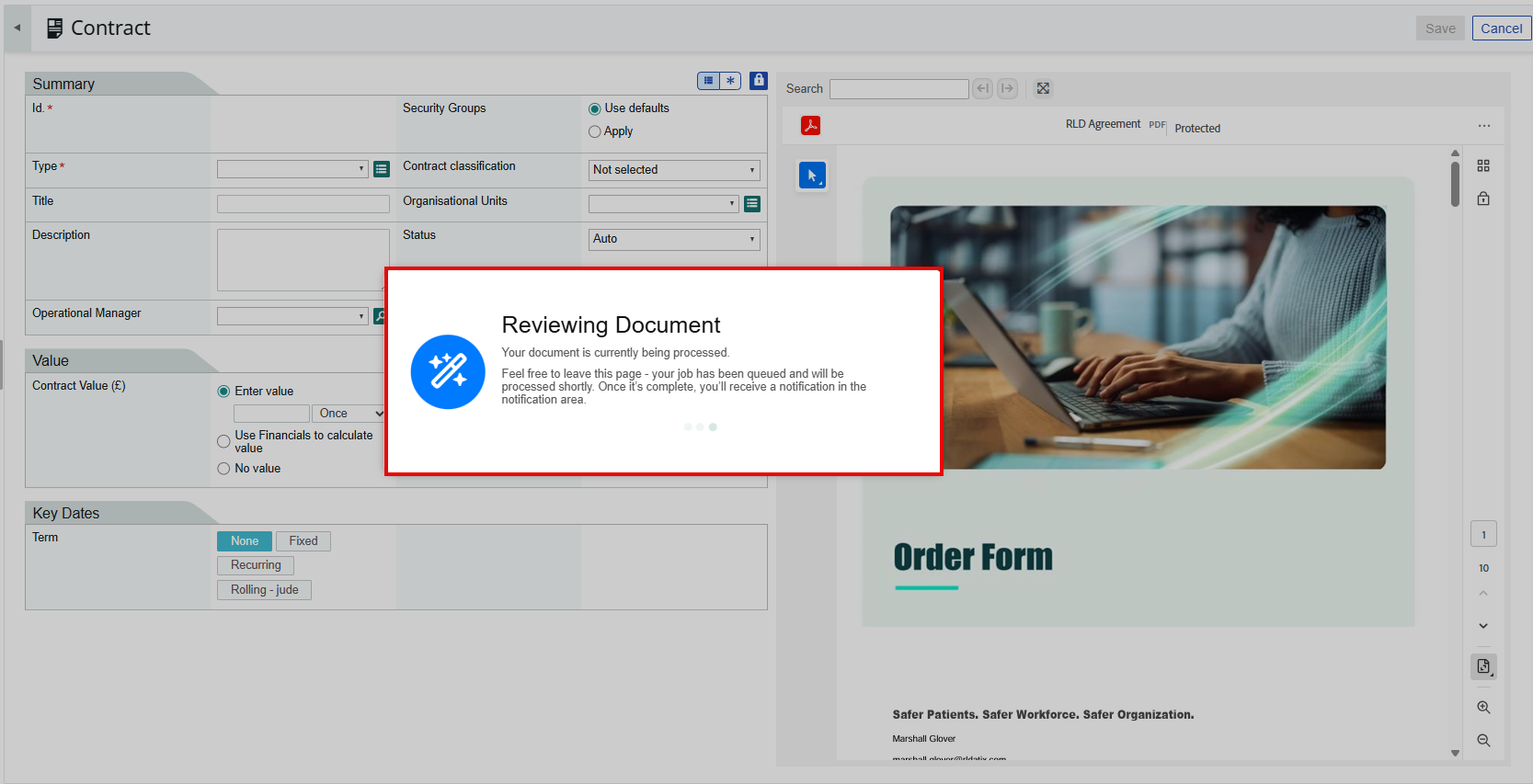

The Wizard will then close and you will be presented with a 'Reviewing Document' message.

SmartExtract is now processing the rest of the document based upon the confirmed Type to identify the correct fields to extract.

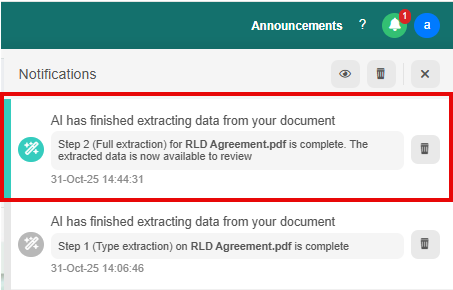

You can either stay in the screen for processing to complete or leave the screen and wait for an Notification to appear to say step 2 is complete.  If you click this notification then the SmartExtract screen will launch and the Wizard will display for you to process.

Stage 2 - Field Confirmation

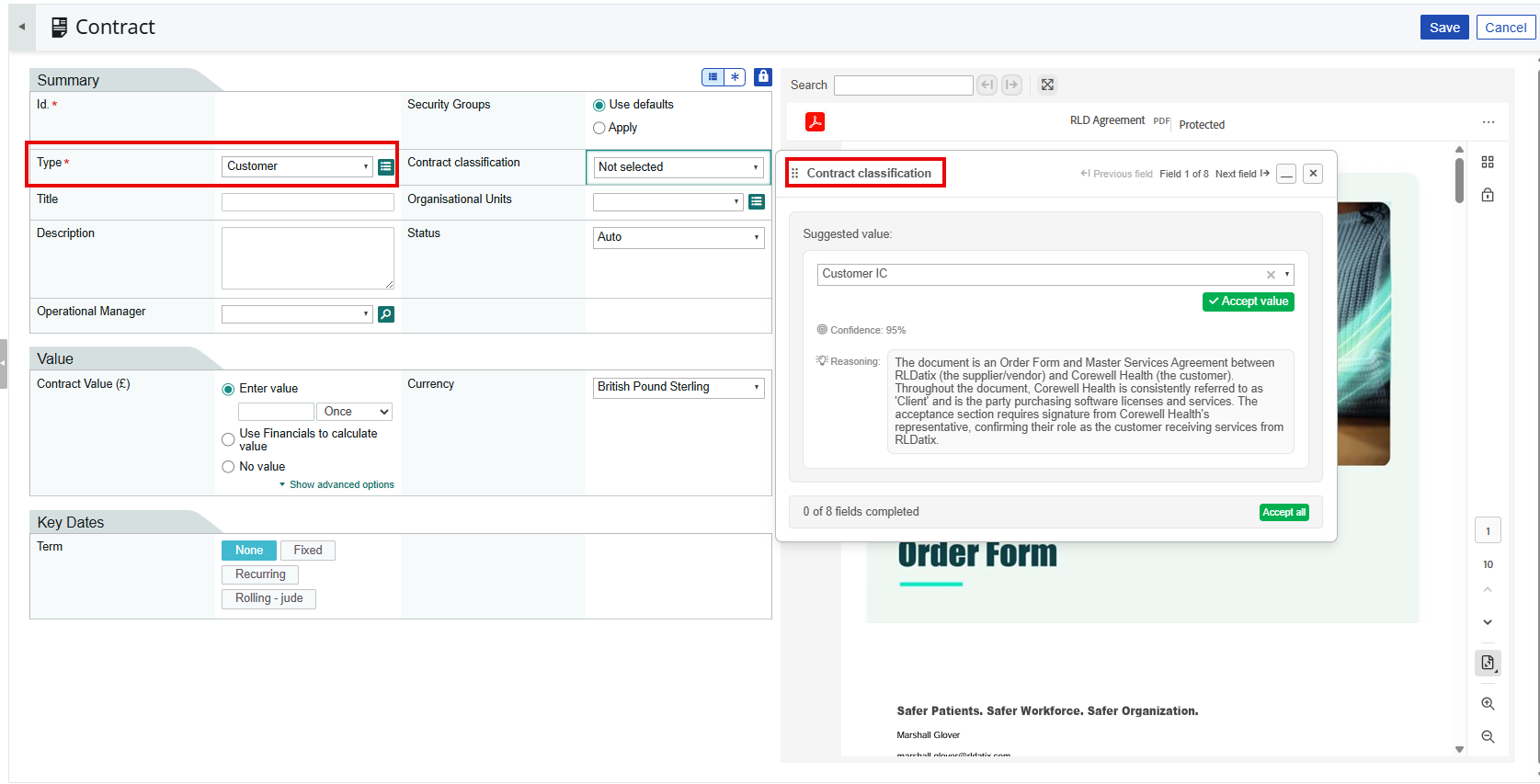

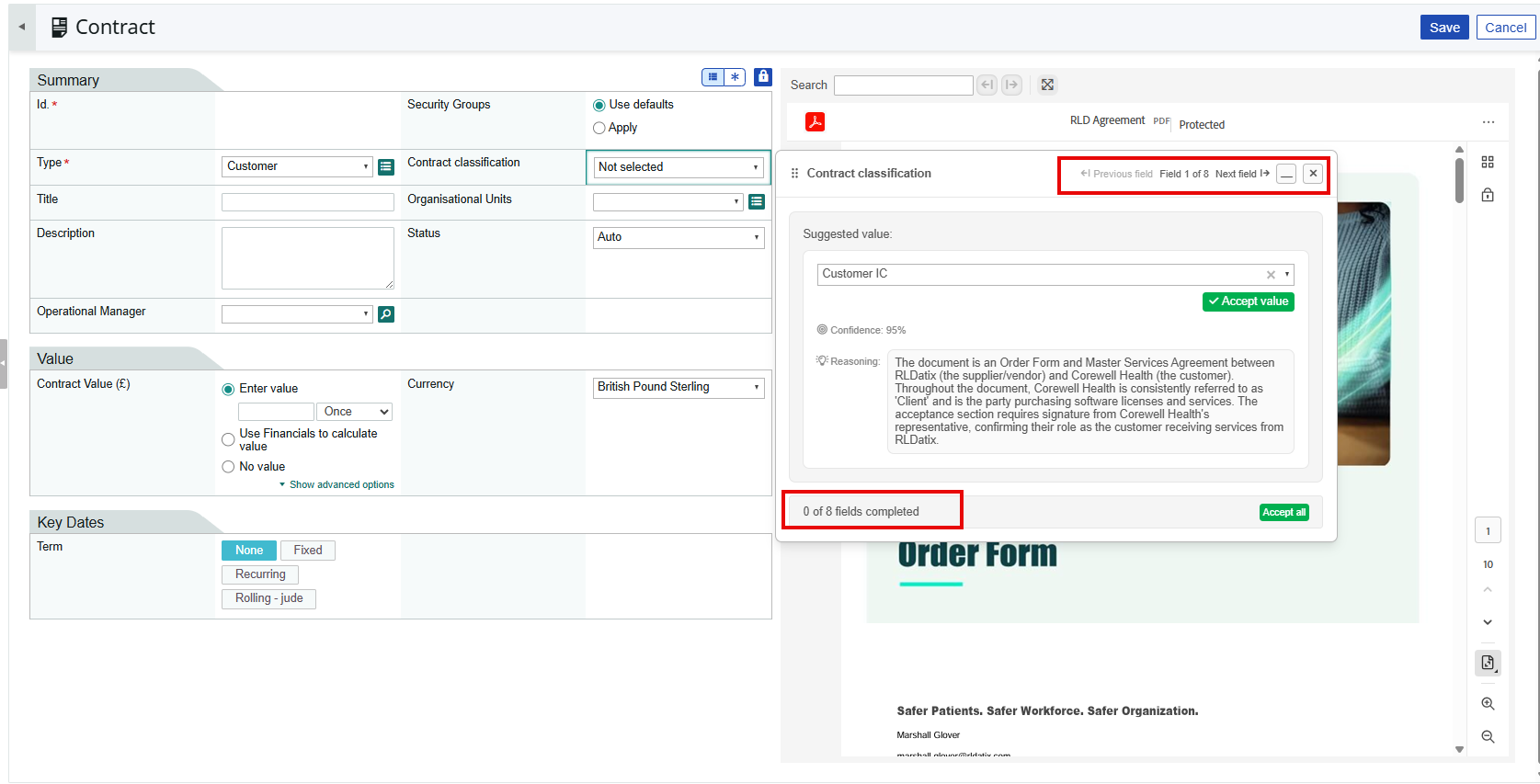

The SmartExtract screen will open with the Type field automatically populated in your new record and the Wizard will be positioned on the next field for extraction.



The field will be highlighted green, as you progress through the Wizard it will move through the form to the corresponding field.

The Wizard will display the number of fields that have been extracted for you to review.

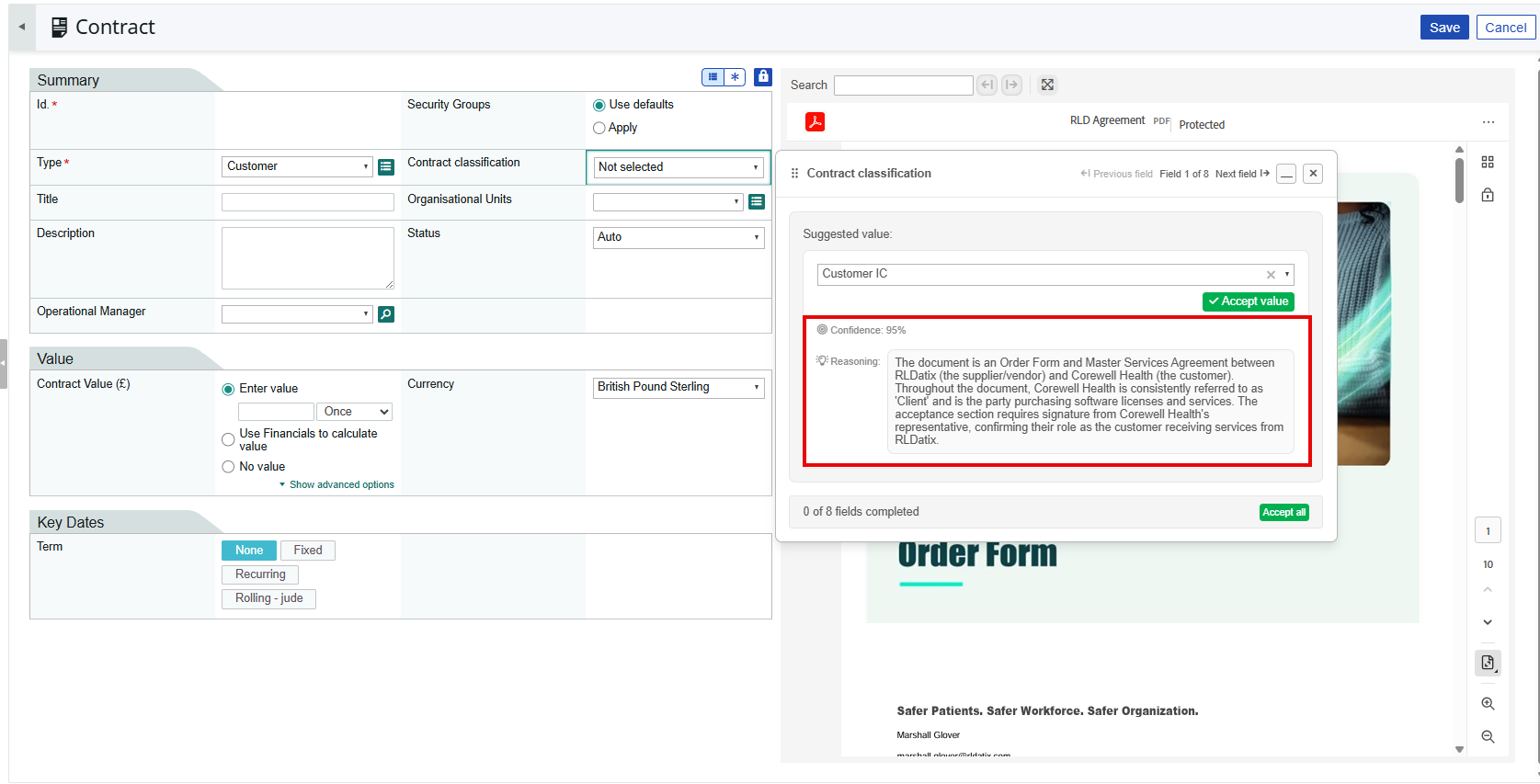

The Wizard will suggest a field value giving a confidence percentage and reasoning why this value is suggested.  This is to allow you to make an informed decision if the suggested value is acceptable.

If you are happy with the suggestion the press [Accept Value], the field will populate with the value and the Wizard will move on to the next field.

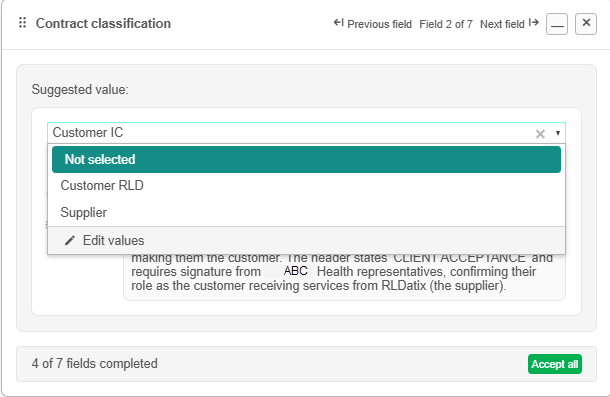

You have the ability to change the suggested value.  This maybe using a drop down to either choose an alternative or add/remove values.

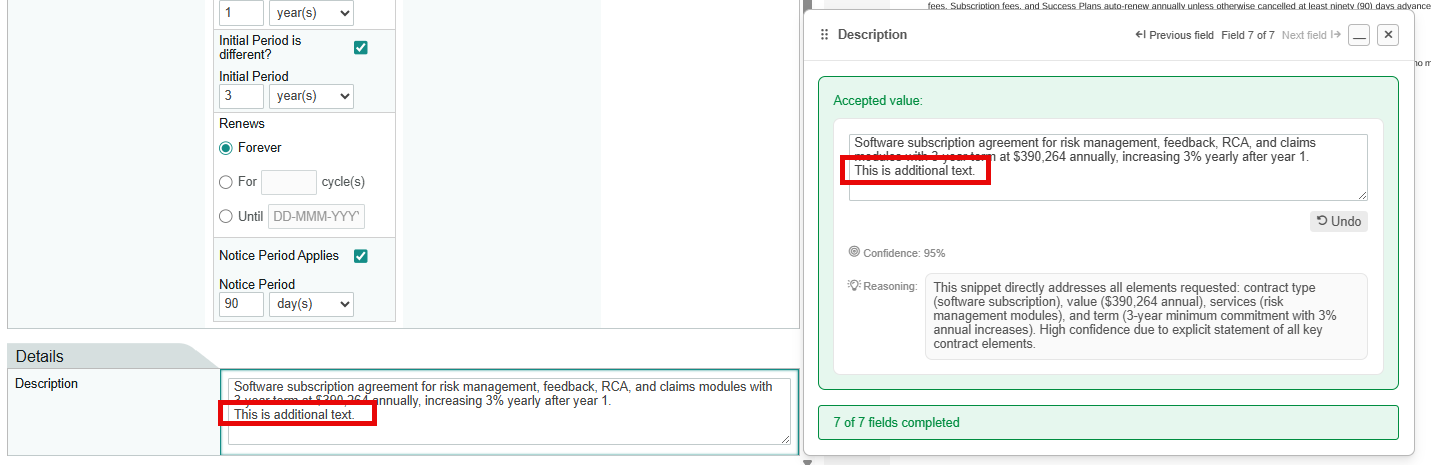

Or for text information you can click in the suggested value field and manually adjust the text.

Once you have adjusted the value, if you press [Accept Value] then your adjusted value will populate in the field.

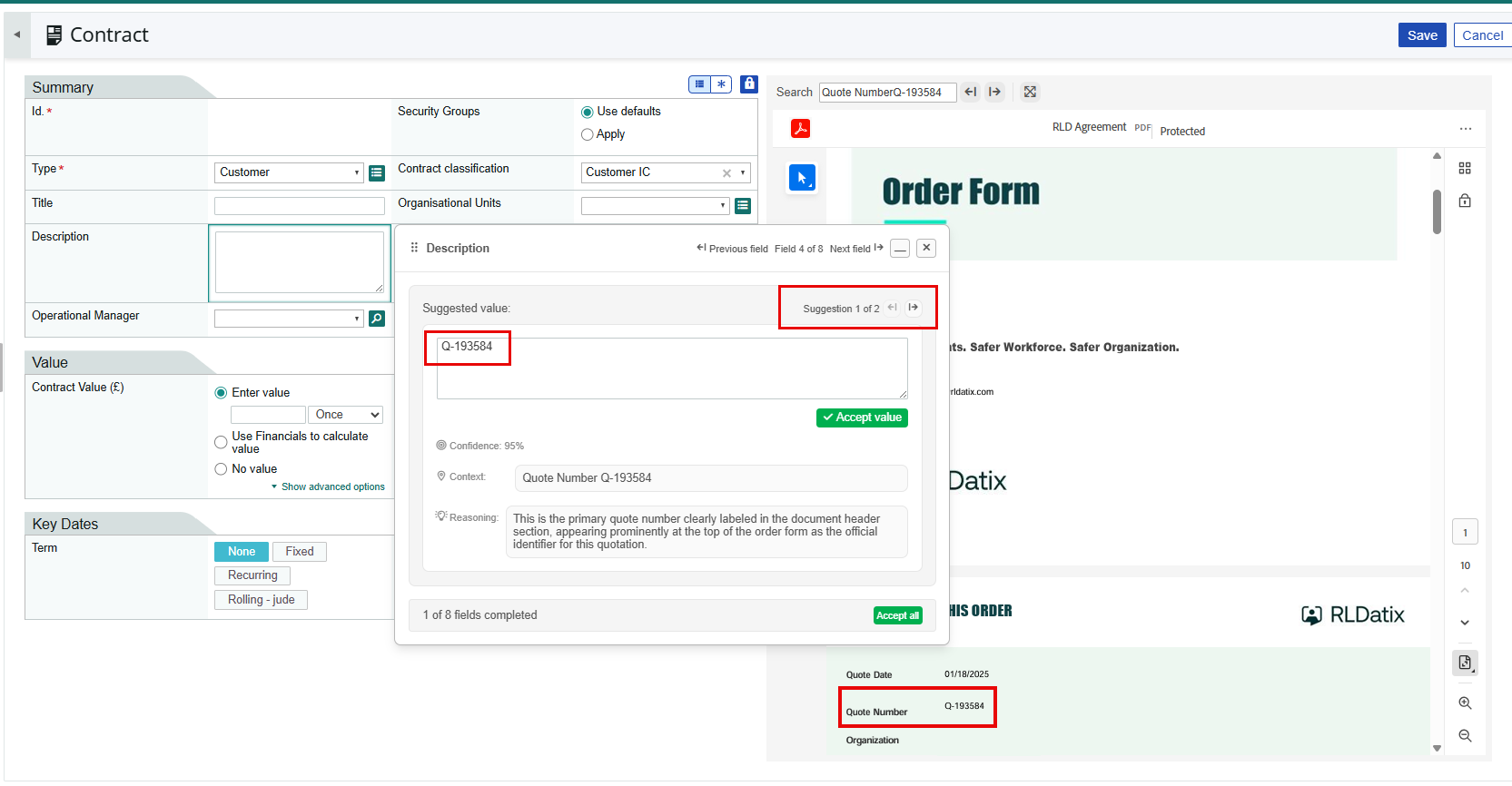

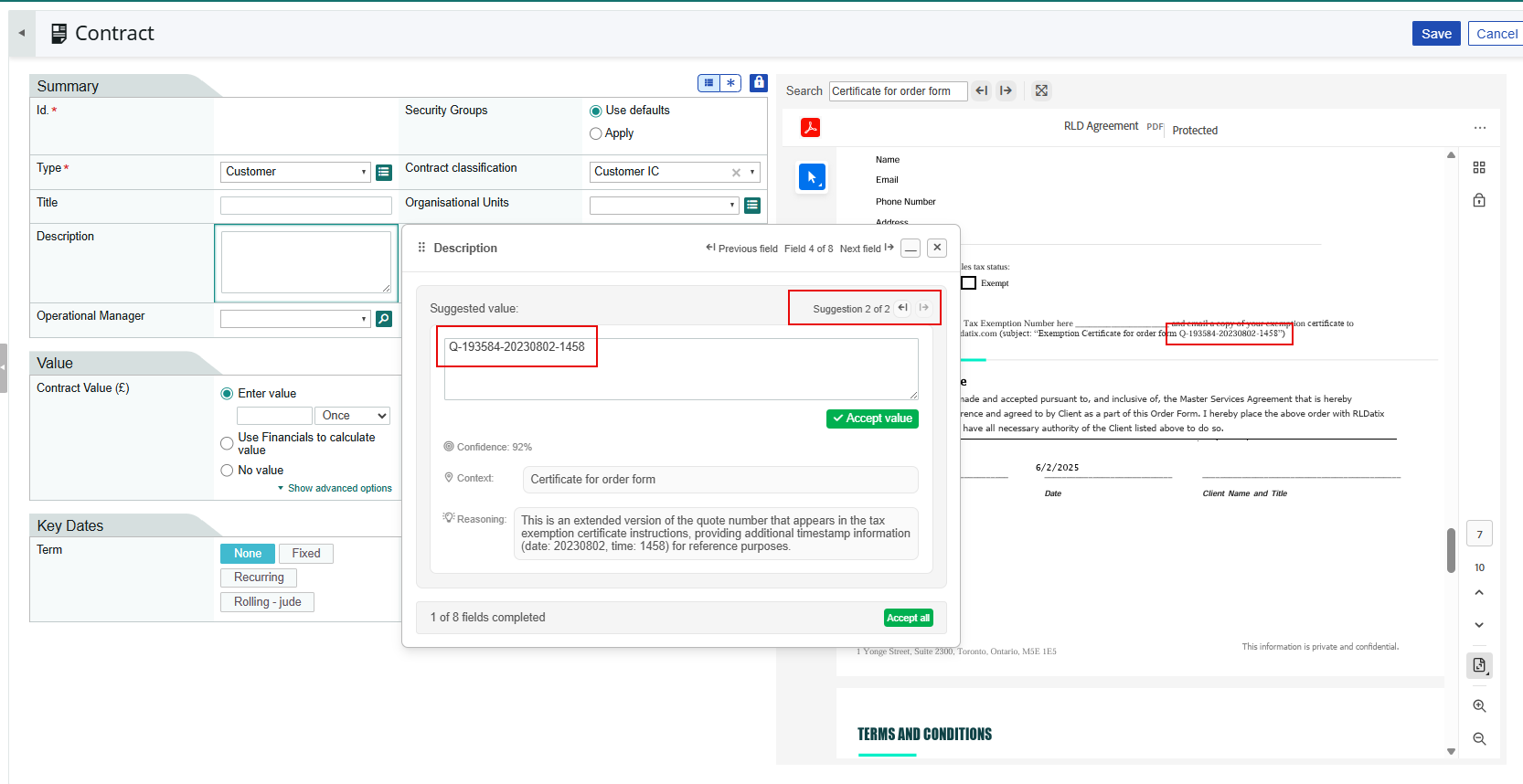

If there is more than one suggestion for the field value, these will be presented.  Use the arrows to flip through the suggestions and choose the correct suggestion.

Suggestion 1

Suggestion 2

Continue processing through the Wizard, making adjustments where required until all fields have been reviewed.

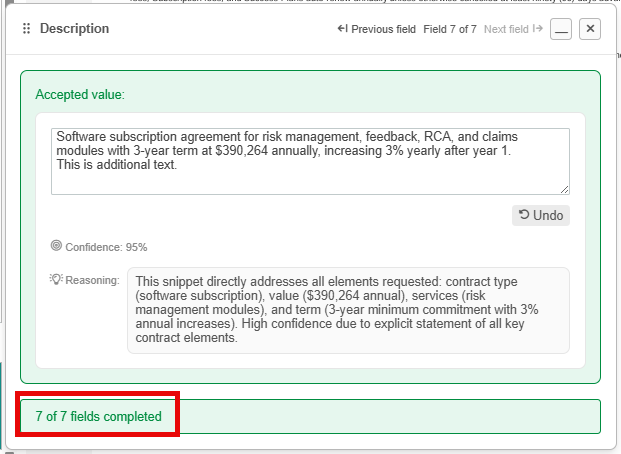

When you have processed the final field the Wizard will turn green and the bottom of the Wizard will display how many fields will be populated by SmartExtract.

---

Note: you do not have to accept a value in every field, if you do not accept a field value then this field will be left blank in the new record.

---

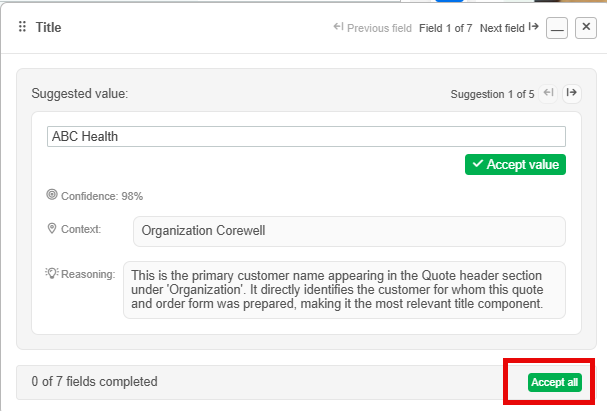

If you do not wish to review each individual field then you can press [Accept All]

If you choose this option then SmartExtract will populate each field automatically with the highest percentage suggestion.

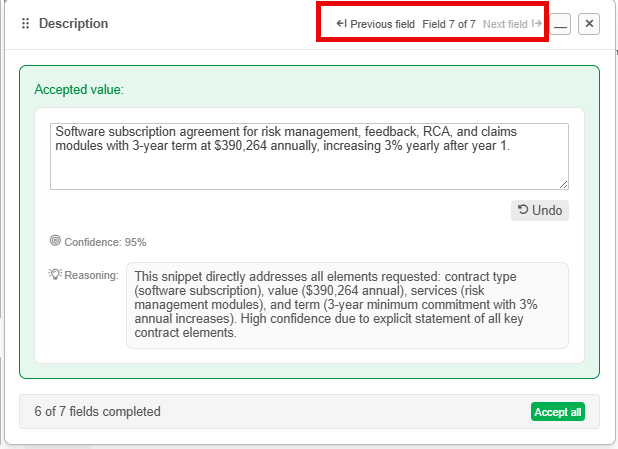

You can use the 'Previous field' and 'Next field' options to go back and forth through the Wizard

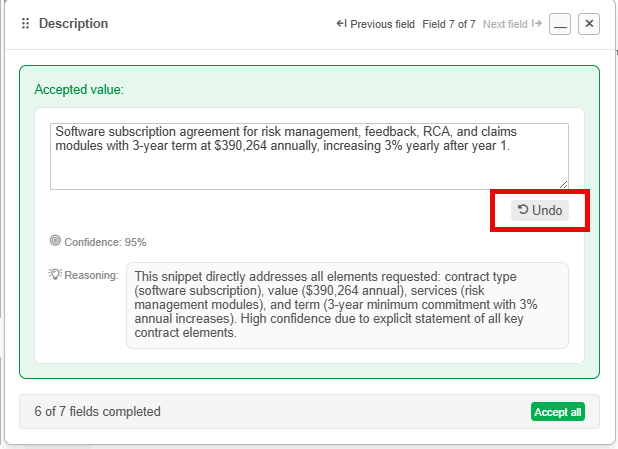

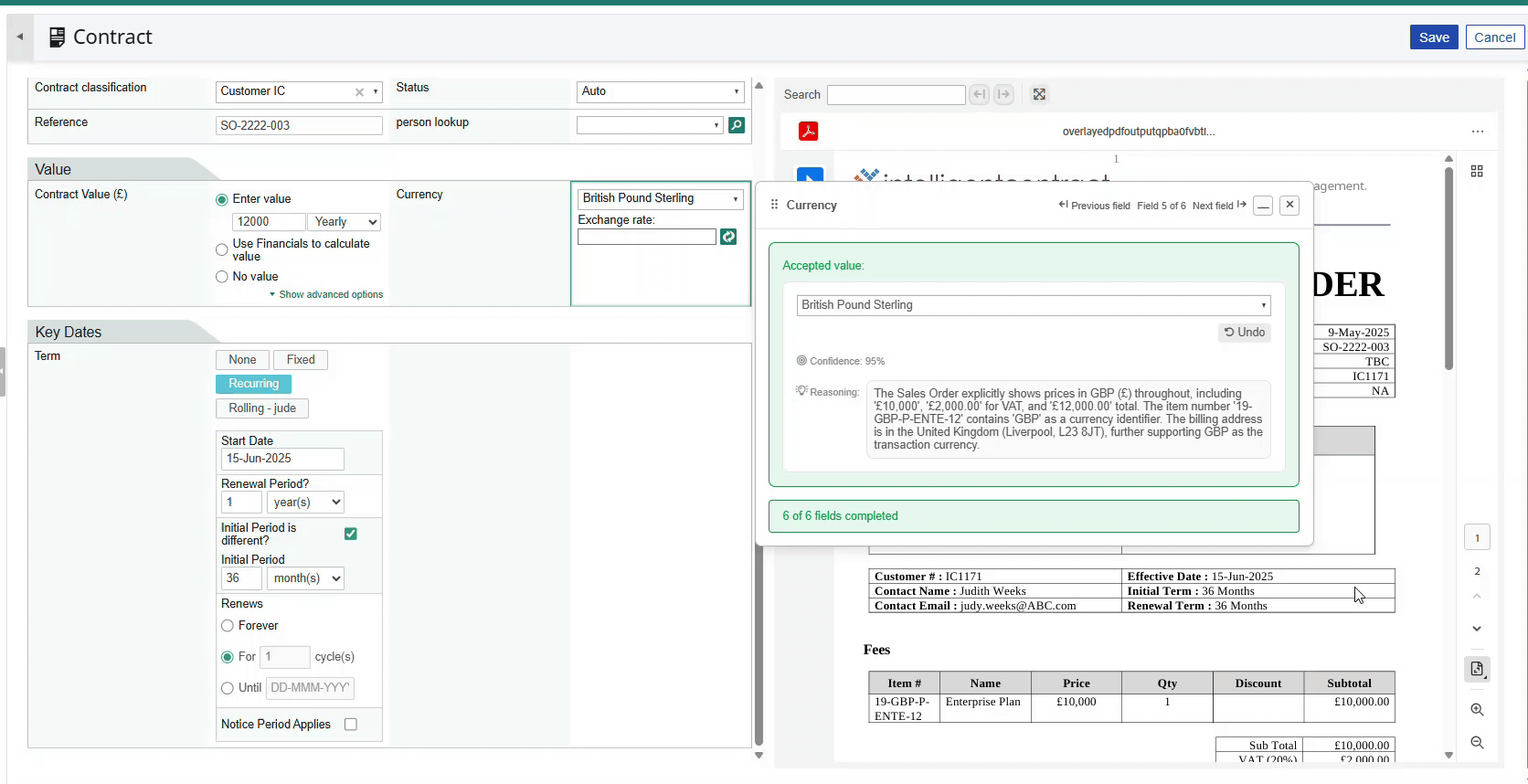

You can use the [Undo] button to remove an accepted value.

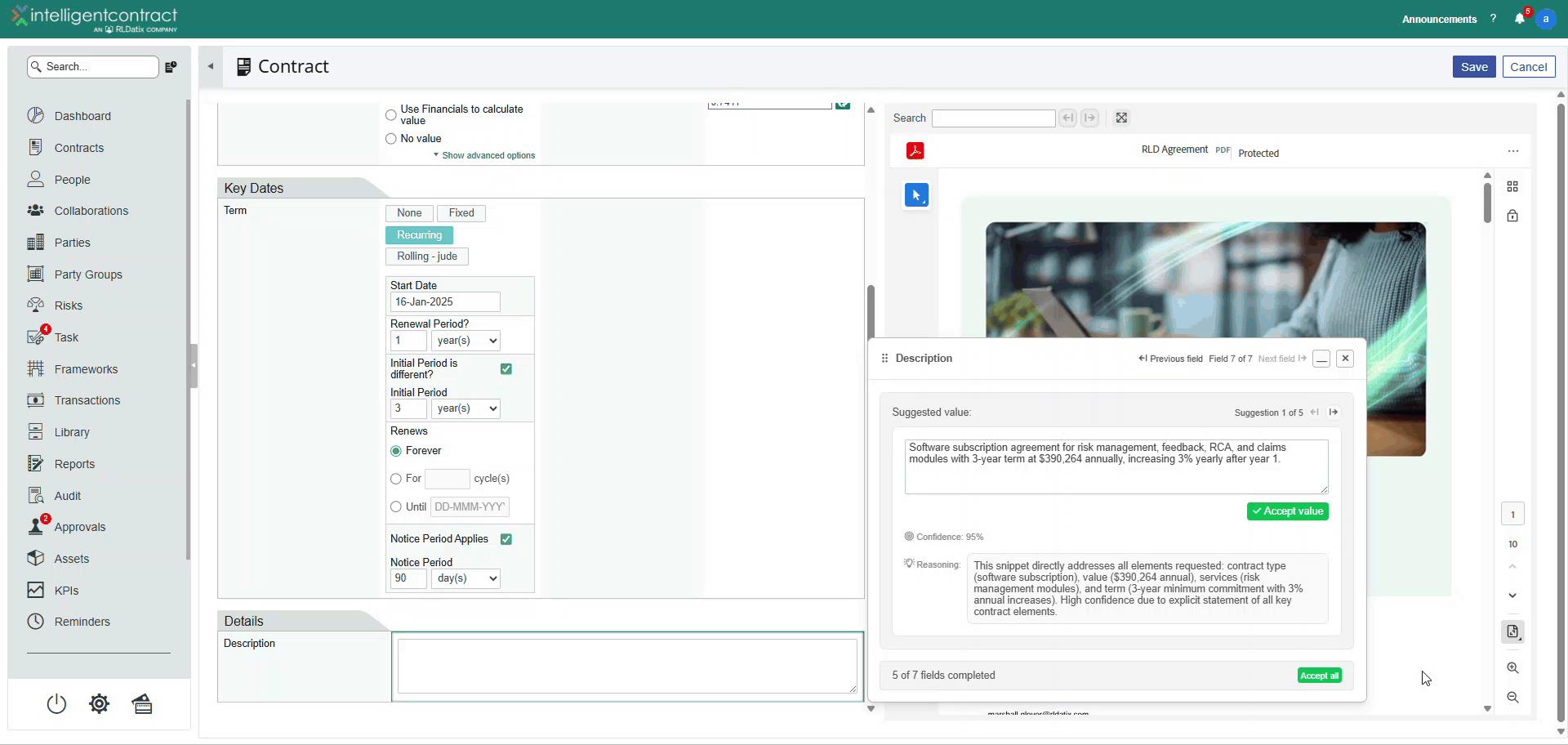

The wizard is positioned to follow each field through your form, it can be repositioned out of the way if you need to review any data it is covering.

The Wizard can snap back to its position by clicking the 'Reattach to field' icon.

Creating a Contract record

Once you have finished reviewing all your fields you are ready to create your new Contract record.

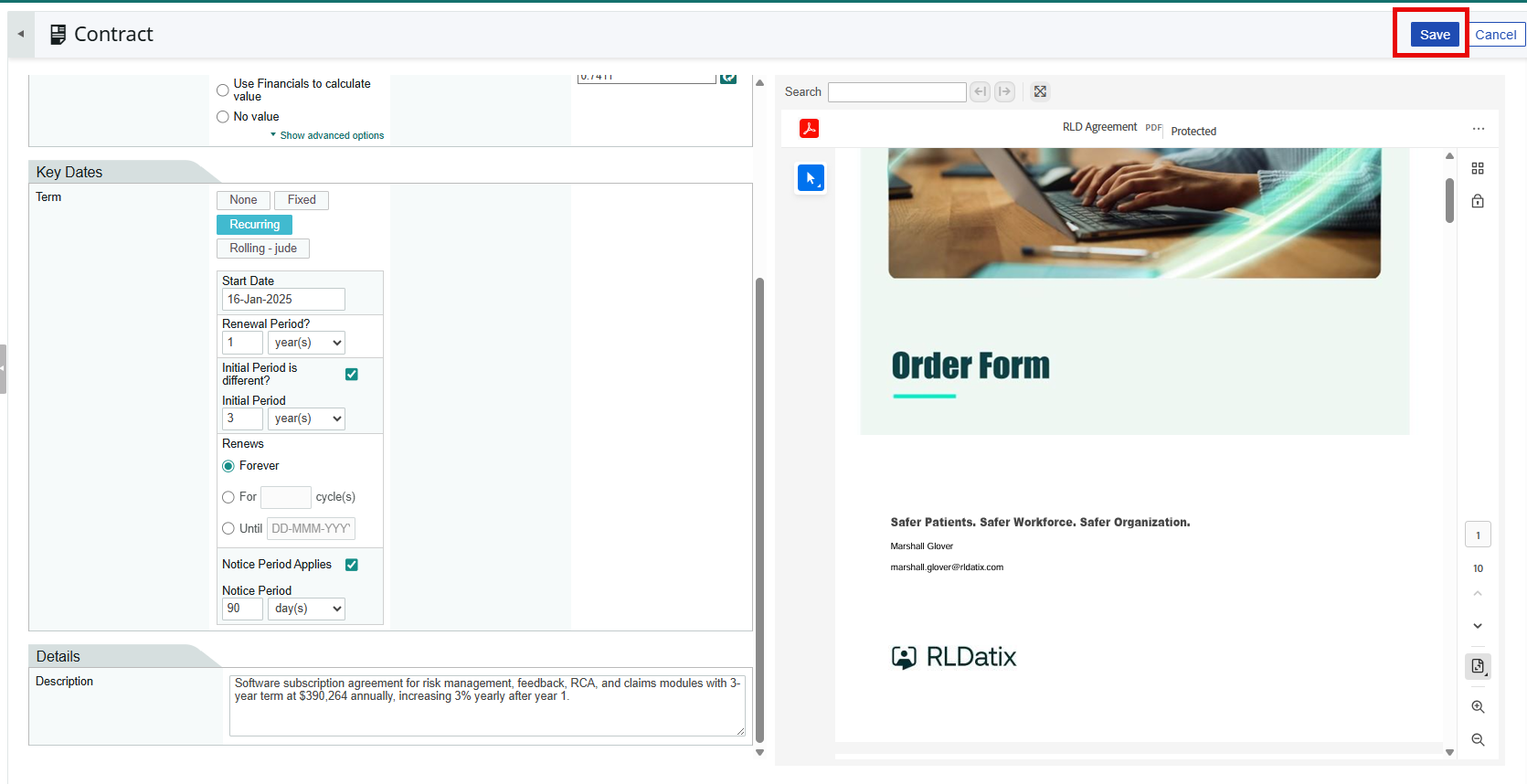

Use the 'x' on the Wizard to dismiss it and then press [Save] on the top right of the screen

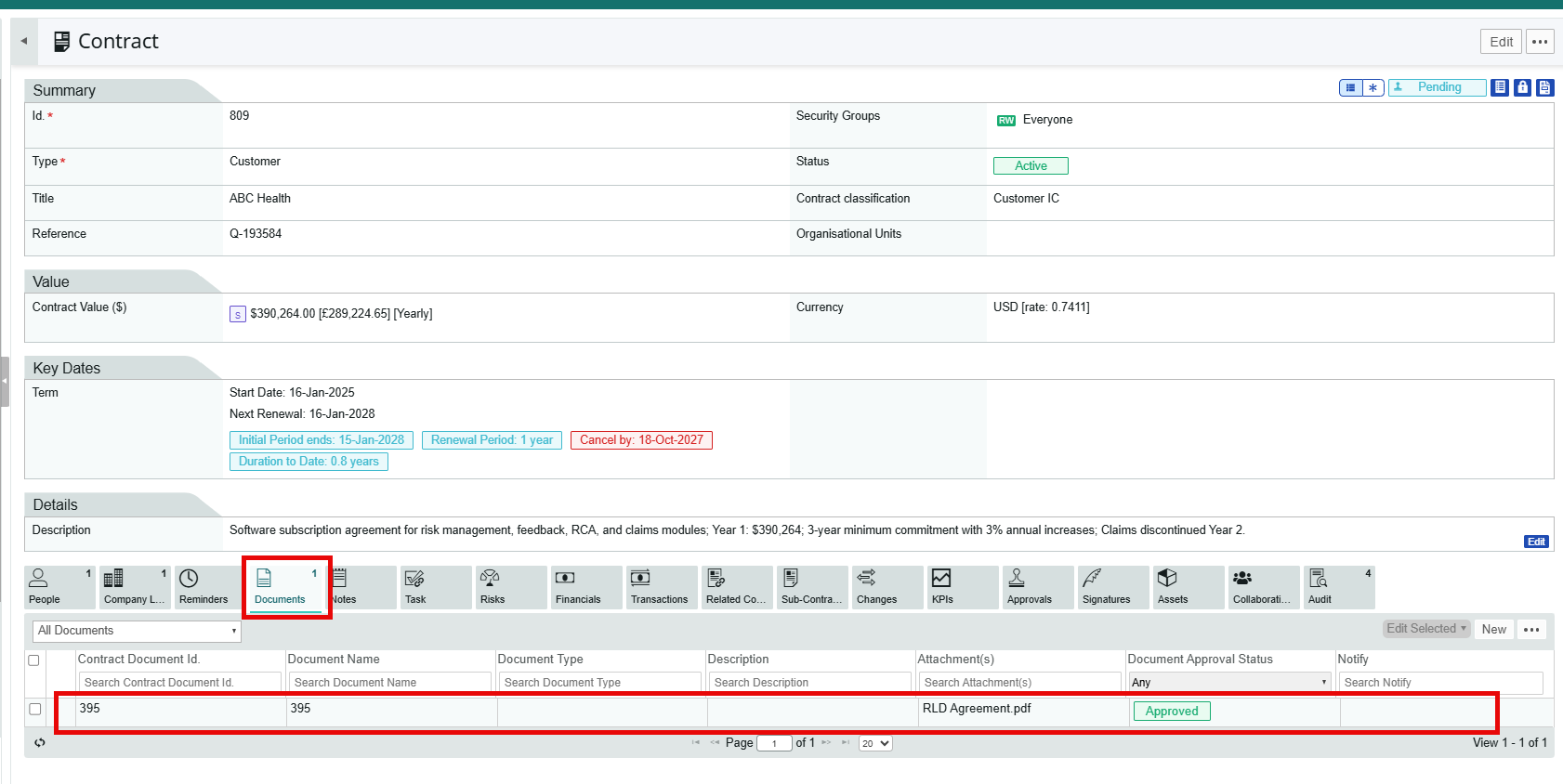

The screen will update and display the new Contract record with all your field values populated.  If you  selected to add the file then a Contract Document record will be created with a copy of the document in the Documents sub tab.

This record will need to be edited and adjusted with the correct Document field values, such as Title and Type.

---
